DXDK series---stick packaging link line

DXDK series---stick packaging link line

Details

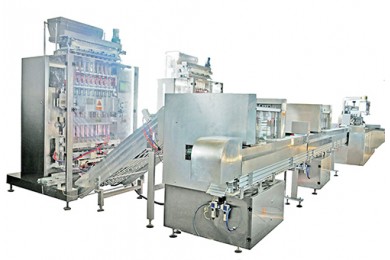

DXDK series---stick packaging link line introduction


  DXDK multi-lane stick packaging link line is our company independently developed the new generation of product. It’s widely adapted to kinds of granules, powder, liquid and other materials. The packaging link line can complete a series packaging process that contain automatic filling, measurement, making bags, sealing, printing codes, cutting, outputting, ordering, sorting &counting, stacking, synchronization connecting cartoner, automatic cartoning, automatic inserting package insert, automatic checking weighing, finished outputting, removing failed products and so on. This link line can save human resources and increase productivity for user. It’s the development trend of mainstream pharmaceutical packaging equipment.
  This link line can complete one set or multi sets packaging machine combination with one set or multi set conveyors supply for one set cartoner. Customers can accord productivity selecting equipments arbitrarily. Achieve host and cartoner fully using.
  This link line can achieve each conveyor running independently; that can fully achieve insulating internal and external packaging room, avoid internal packaging room second polluting. Meet the new GMP certification requirements. This is the biggest advantage of the link line.



Technical Parameters

Bag size

16.5mmW70mm; 50 mmL190mm

Dose

1-200ml

Lane

4-12 lanes

Crosscut frequency

Max yield /min

Granule feeder up to 30~45 cuts/min

Powder feeder up to 20~30 cuts/min

Liquid feeder up to 20~40 cuts/min

Max packing film wide

750mm

Power

380V50HZ

Granule accuracy

±5%

Carton

1-40 bags/carton

Link line yield

20-60 cartons/minaccording to bag type and dose counting

Link line shape according to customer plant layout customization
