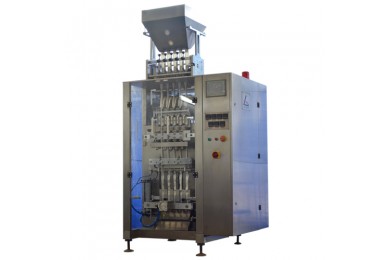

DXDK450 Multi-lane Stick Packing Machine for Granule

DXDK450 Multi-lane Stick Packing Machine for Granule

Details

Its automation functions include automatic feeding, dosing, bagging, filling, sealing, data printing, products output and a series of automatic functions, etc. According to users` requirement, it possesses automatic aligned function. Feeding part of the machine uses translational feeding machine, accuracy measurement, and the use of stable, simple and easy to adjust.

 Major Parameter

Packing material

Aluminum/PlasticPaper/ PlasticPlastic / Plastic composite film

Packing dose

240ml

Bag length

80200mm

Bag width

2560mm

Machine Dimensions

1300×1700×2500

Core diameter

φ70—φ76mm

Total electric power (KW)

9KW

Power specifications

380V 50Hz

Compressed air strength

0.6Mpa

Compressed air consumption

5.5m3/h

Weight

1900kg

Maximum width

450mm

Maximum outside diameter

φ300mm

Horizontal cutting frequency

Up to 50 beats / min, depending on the shape of package
